Battlezone High Score Save Kit

A simple to install high score save kit that permanently remembers the top 10 scores and initials for Battlezone. No batteries required.

Bonus: Doubles as a "ROM Saver" - no more messing around with old faulty sockets.

Installs in minutes! No special wiring or soldering is required. Simply remove the 6502 CPU chip from your Battlezone board, insert the 6502 CPU chip into the daughter card (pictured right) and then plug the daughter card into the vacated 6502 CPU socket on the board. Thats it! See Detailed installation instructions

High scores and initials can easily be cleared out at any time by putting the game into selftest and pressing both the start button and fire button at same time. See Clearing High Score table.

High Score Save Kit

(click for larger image)

[an error occurred while processing this directive]

Features

	Kit installs in just minutes. No board modifications or special wiring is required. See detailed Installation Guide.

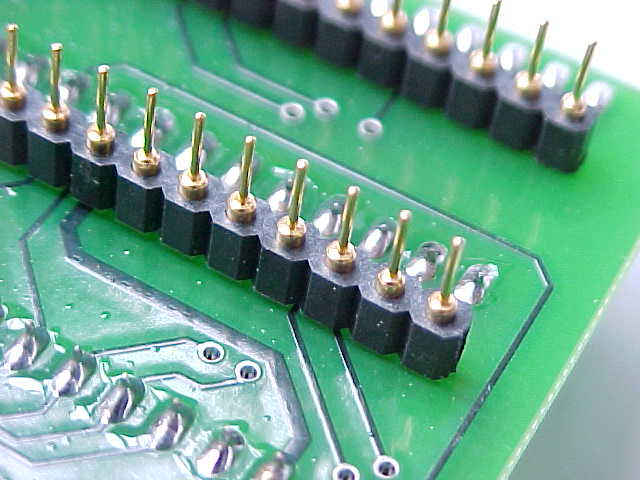

	Special high quality gold plated machined header pins on daughter card. Provides a perfect mate with your Battlezone CPU socket. High reliability and strength for a long lasting connection. Daughter card snaps firmly into place. See picture.
	Top 10 high scores and initials are remembered permanently, long after the game has been powered off. No batteries to replace ever.
	Easy to clear out the high scores when desired. Simply put the game into selftest (using the cabinet selftest switch). Once in selftest mode, press (and hold) the start button and the fire button. The screen will imediately show "ERASED" indicating the high scores have been cleared out. This is a similar procedure used by other atari games. See Clearing High Score table for detailed directions.

Misc

Trouble Shooting Guide.
