Step 0: Make sure the game is fully working
Step 1: Remove the game PCB from the cabinet
Step 2: Locate and remove the 6502 CPU chip
Step 3: Insert the 6502 CPU into the Multigame Kit
Step 4: Insert the Multigame CPU into the boardset
Step 5: Locate and remove the two vector ROM chips
Step 6: Insert the Vector board into the boardset
Step 7: Double check your work
Step 8: Powerup the game and enjoy!
trouble shooting section.
You are now ready to start the installation.
Tip: Take your time! Remove the gameboard so the work can be done in a well lighted area. Do not attempt to install this kit without removing the gameboard from the cabinet.

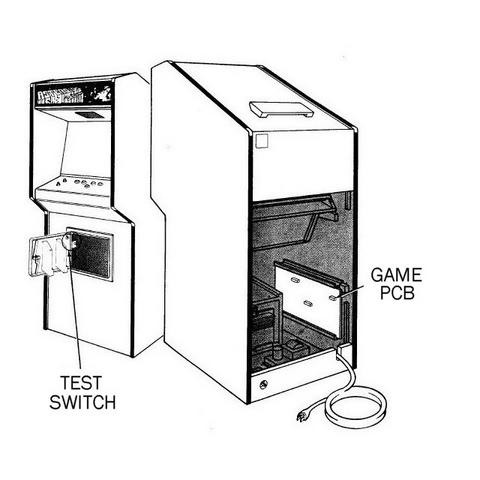

Upright PCB location

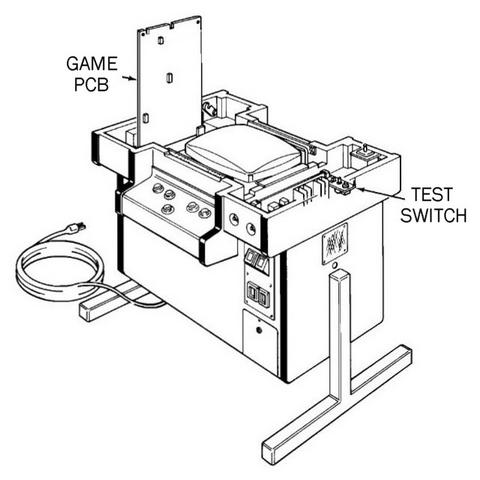

Cocktail PCB location
|(Click images for a larger view)|

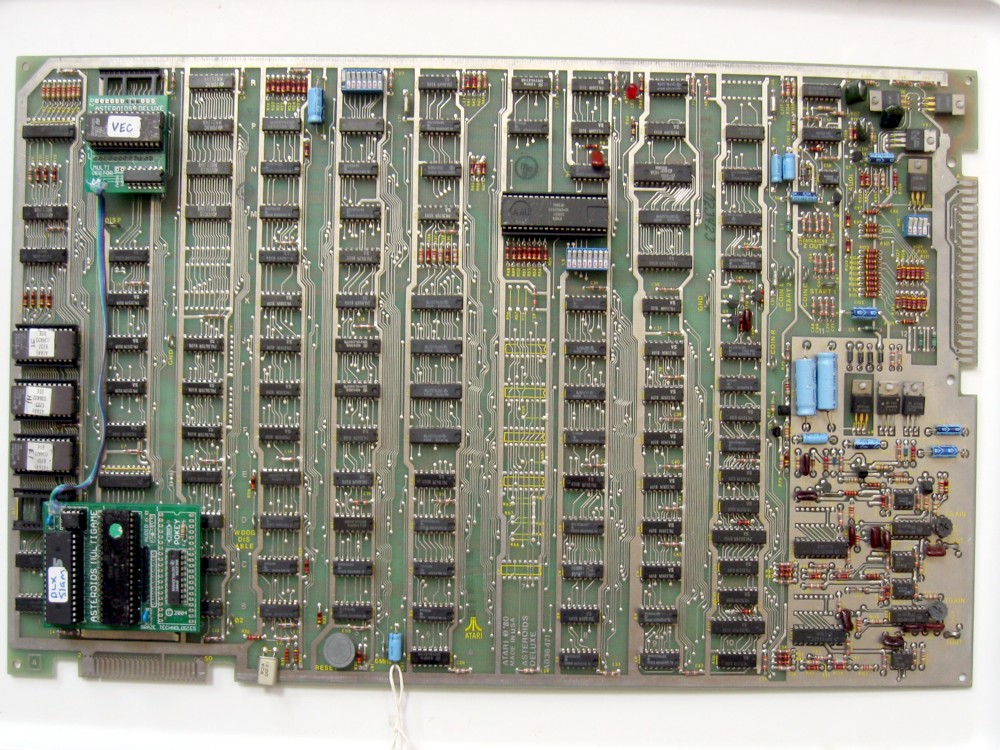

Asteroids Deluxe PCB - Key Component Locations

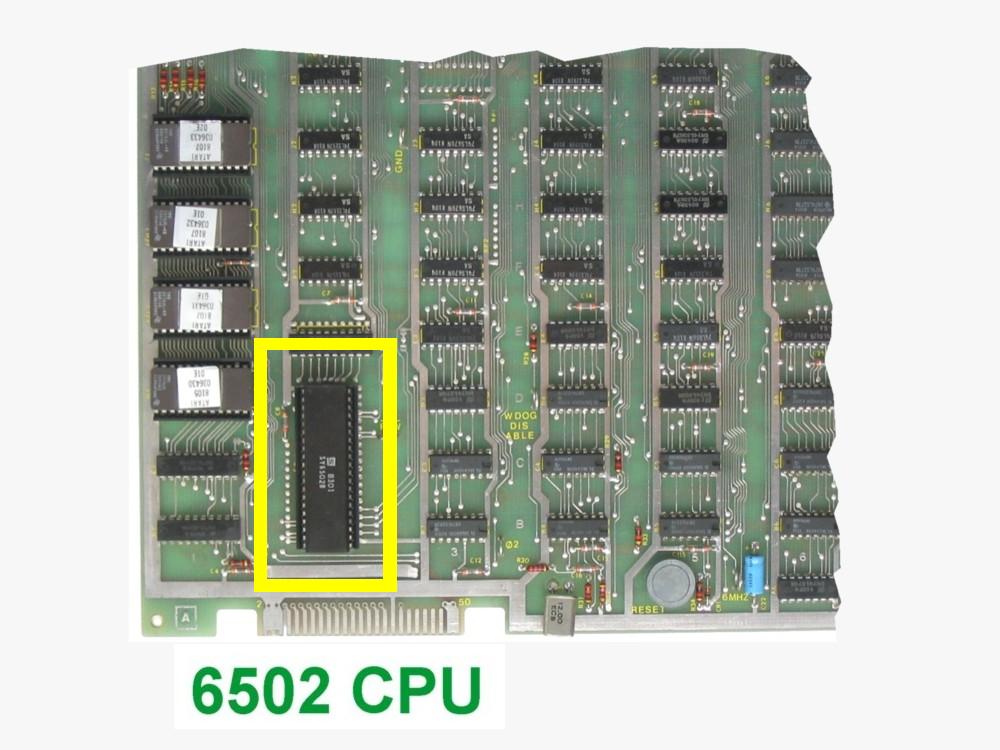

Locate and remove the 6502 CPU chip on the boardset. Use the images below to assist in locating it. See 6502 Chip Identification for additional information. The 6502 CPU chip is a 40 pin (large) chip, located in the corner of the board at location C3. It is the only 40 pin chip on the boardset and on some earlier revisions is located in column 2. See the yellow square in the picture above. It is adjacent to the smaller "catbox" connector.
Gently remove the 6502 chip by using a flat head screwdriver to pry it out of its socket from each end.
Caution: Some of the Atari boardsets have open frame sockets which do not protect the PCB traces. Be careful not to scratch any of the PCB traces underneath the socket. Be careful not to bend any of the pins. If any pins do get inadvertently bent they will need to straightened out before the next step.

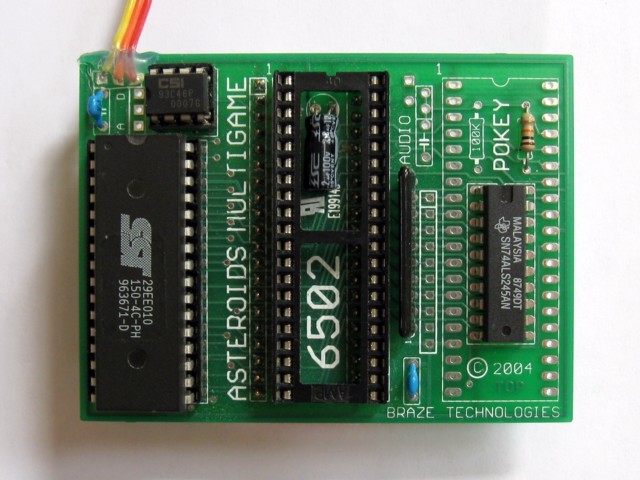

Insert the just removed 6502 CPU into the empty 40 pin socket on the Multigame Kit. Make sure pin-1 is correctly oriented. Pin-1 is marked on the 6502 CPU chip by some type of indentation or circle molded into the plastic. The end of the chip with the marking, needs to match up with the socket on the daughter card that also has a marking on the plastic. Pin-1 is also labelled on the kit pcb with a large "1". If the 6502 chip is installed backwards it may cause permanent damage to the 6502 chip or the multigame.

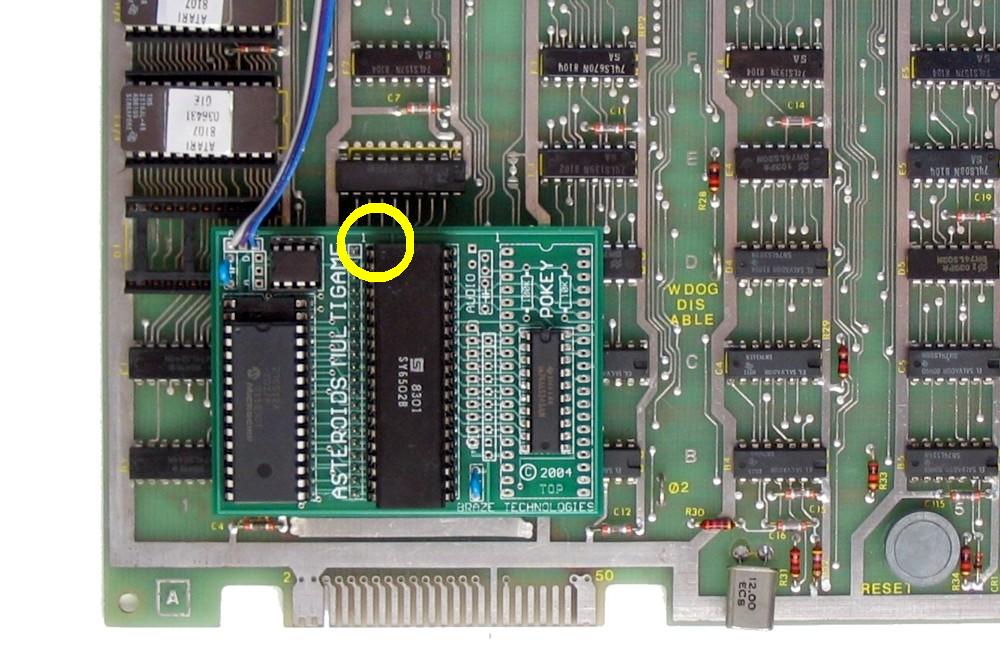

Insert the mulitgame CPU daughter card into the 6502 CPU socket on the Asteroids boardset where the 6502 CPU chip was originally removed from. Check to make sure pin-1 of the 6502/daughter card is oriented to correctly match pin-1 on the boardset. Use the photos as a guide.
Be careful not to bend any of the tiny pins on the multigame. Do not force the multigame into the socket.

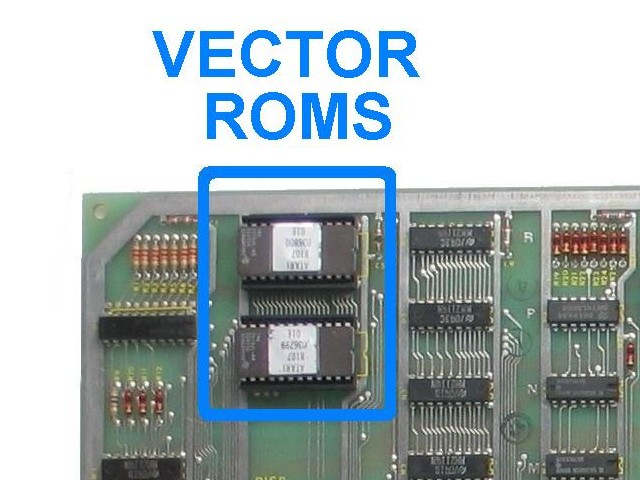

Locate and remove the two vector ROM chips on the boardset. The vector ROMs are located at grid location N/P2 and R2. They are 24 pin devices usually on the same column as the 6502 CPU.
Remove both of the vector chips gently by using a flat head screwdriver to pry it out of its socket from each end just like done in step 2 when removing the 6502 chip.
The Asteroids Deluxe vector ROM chips are not used once the multigame is installed. It is suggested to save these chips in the Multigame antistatic bag. They may be needed for trouble shooting and if ever the Multigame kit is to be uninstalled and reverted back.

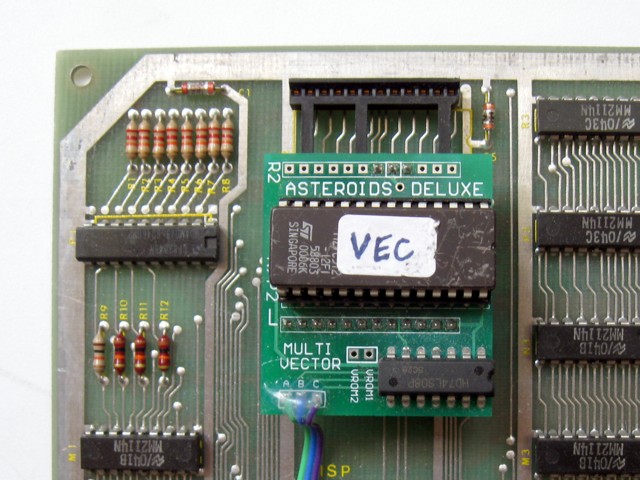

Install the vector daughter card into the N/P2 socket. Note: there are 3 extra pins on the multigame vector daughtercard which install into one row of socket R2. Carefully line up these 3 rows of headers. Make sure no pins get inadvertently bent and make sure that no pins overlap the ends of the socket. At this point both Multigame pcbs should be installed into their respective sockets. You may want to use a few strips of tape to secure the wires to the board so that they do not easily get caught or snag on something.
Review the steps and double check that 6502 CPU is properly installed into the daughter card with no bent pins and that it is correctly oriented for pin-1. Check that the daughter card is also installed snug into the 6052 CPU socket at C3 with pin-1 matched up. Check to make sure the daughter card is not inadvertantly off by one row such that one pin on each side is off the end of the socket. Repeat the checks for the vector board. REPEAT: If any of these devices are incorrectly installed it may cause permanent damage to the boardset or kit.
Multigame power on diagnostics
Multigame configuration setup from testmode
It is suggested that this step is done after verifying the multigame is working. That is because in the trouble shooting section one of the procedures depending on the problem is to un-install the kit and revert it back to original asteroids deluxe for verification.
